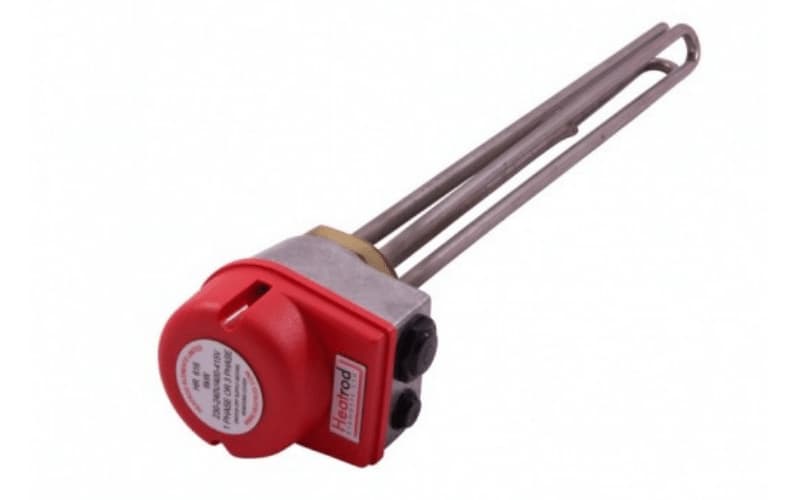

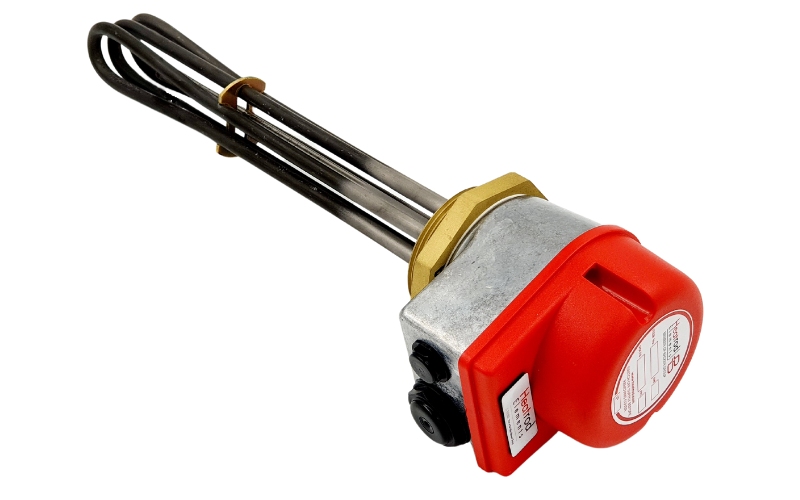

HR Light Industrial
The HR range of immersion heaters are designed for commercial and light industrial applications. The terminal box is proved for ease of wiring and flexible for access in all types of locations. Along with the standard range detailed, we also manufacture using different levels of element sheath protection, depending on the environment which the heater is being installed into.
Features
- For use in water in commercial/light industrial applications
- IP55 rotatable terminal cover
- Incoloy 825 sheath
- Single thermostat pocket
Benefits
- Separate power and control glands
- Large range of thermostats available
- Unique design offers both single and three phase installation
-
HR Technical data
Material
Incoloy 825 Sheath Material (inc thermostat pocket)
Loading
3-12kW, Element Diameter: 8mm
Design
IP55 robust rotatable enclosure, heavy duty brass head
Temperature range
28-80°C control, 90°C cutout
Voltage
415V 3-Phase, 240V 1-Phase
Optional
Supplied with or without thermostat
Other
Alternative mounting option available
